TMB (8000VA – 12KVA Models)
Model | Input Voltage | Output Voltage | Delay Time | Protection | Power | Product Size (cm) | Packing Size (cm) | PCS/Carton | N.W. (kgs) | G.W. (kgs) |
|---|---|---|---|---|---|---|---|---|---|---|
TMB-8000VA | AC 130V–270V | AC 220V ±10% 50/60Hz | Short Delay: 3–5s / Long Delay: 3–7min | Over Voltage (246V±4V), Overload, High Temperature, Short Circuit | 8000VA | 39.5×30×19 | 45×39.5×25.7 | 1 | 21.1 | 23.1 |
TMB-8000VA (variant) | AC 45V–280V | AC 220V ±10% 50/60Hz | Same | 8000VA | 39.5×30×19 | 45×39.5×25.7 | 1 | 22.6 | 23.5 | |
TMB-8000VA (variant) | AC 60V–280V | AC 220V ±10% 50/60Hz | Same | 8000VA | 39.5×30×19 | 45×39.5×25.7 | 1 | 23.3 | 23.5 | |
TMB-12000VA | AC 95V–280V | AC 220V ±10% 50/60Hz | Same | 12000VA | 39.5×30×19 | 45×39.5×25.7 | 1 | 23.3 | 23.8 |

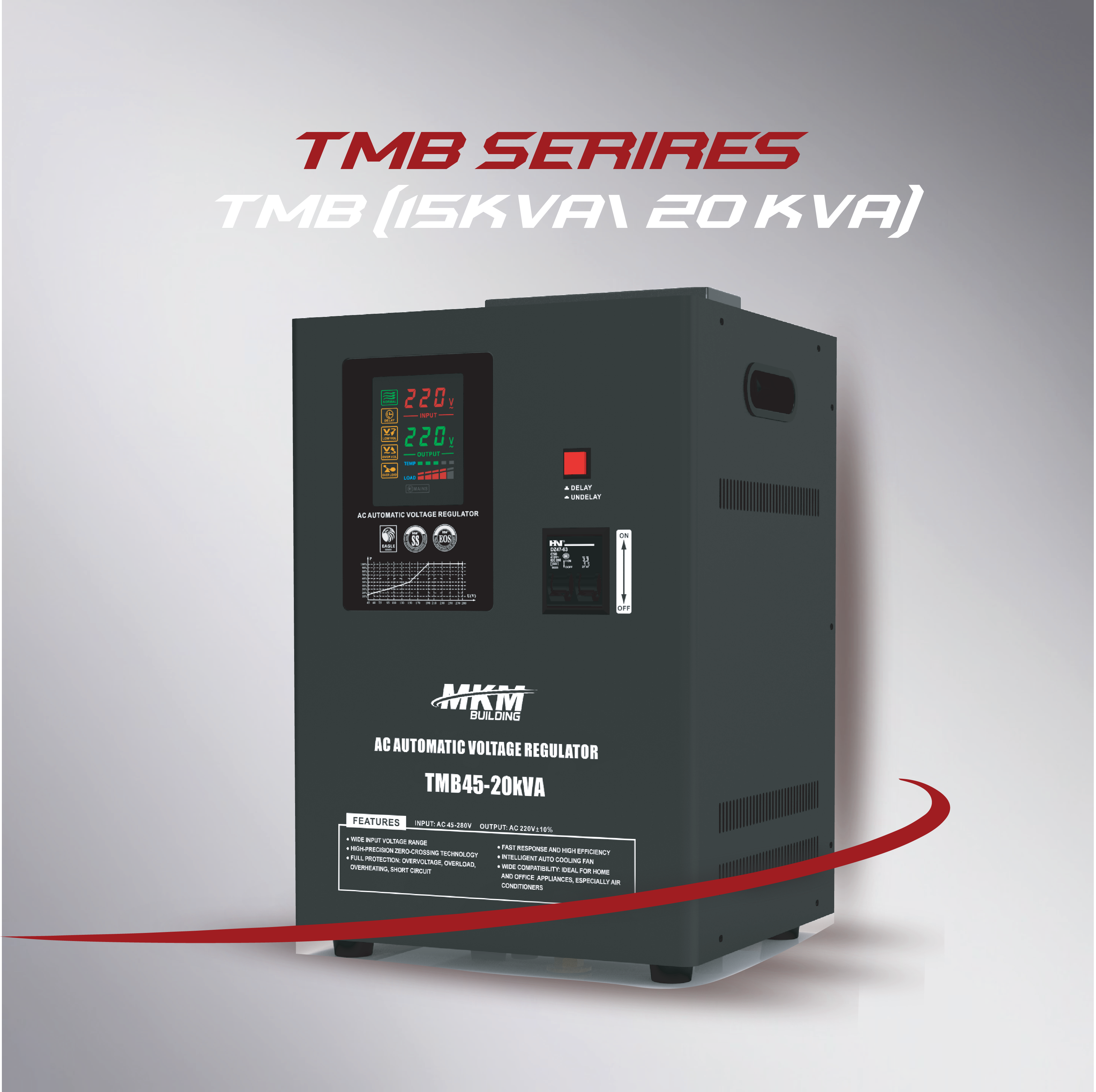

📋 TMB (15KVA – 20KVA Models)
Model | Input Voltage | Output Voltage | Delay Time | Protection | Power | Product Size (cm) | Packing Size (cm) | PCS/Carton | N.W. (kgs) | G.W. (kgs) |
|---|---|---|---|---|---|---|---|---|---|---|
TMB-15000VA | AC 130V–270V | AC 220V ±10% 50/60Hz | Short Delay: 3–5s / Long Delay: 3–7min | Over Voltage (246V±4V), Overload, High Temperature, Short Circuit | 15000VA | 30×27×42.5 | 36×32.5×51.5 | 1 | 29.3 | 33.1 |
TMB-15000VA (variant) | AC 45V–280V | AC 220V ±10% 50/60Hz | Same | 15000VA | 30×27×42.5 | 36×32.5×51.5 | 1 | 31.6 | 35.0 | |
TMB-20000VA | AC 60V–280V | AC 220V ±10% 50/60Hz | Same | 20000VA | 30×27×42.5 | 36×32.5×51.5 | 1 | 31.6 | 35.0 | |
TMB-20000VA (variant) | AC 95V–280V | AC 220V ±10% 50/60Hz | Same | 20000VA | 30×27×42.5 | 36×32.5×51.5 | 1 | 31.6 | 35.0 |
