TMB (3000VA Models)
Model | Input Voltage | Output Voltage | Delay Time | Protection | Power | Product Size (cm) | Packing Size (cm) | PCS/Carton | N.W. (kgs) | G.W. (kgs) |
|---|---|---|---|---|---|---|---|---|---|---|
TMB-3000VA | AC 130V–270V | AC 220V ±10% 50/60Hz | Short Delay: 3~5s / Long Delay: 3~7min | Over Voltage (246V±4V), Overload, High Temperature, Short Circuit | 3000VA | 33×24×14 | 38.5×33.5×21.2 | 1 | 11.2 | 11.8 |
TMB-3000VA (variant) | AC 95V–270V | AC 220V ±10% 50/60Hz | Short Delay: 3~5s / Long Delay: 3~7min | Same | 3000VA | 33×24×14 | 38.5×33.5×21.2 | 1 | 11.2 | 11.8 |
TMB-3000VA (variant) | AC 60V–270V | AC 220V ±10% 50/60Hz | Short Delay: 3~5s / Long Delay: 3~7min | Same | 3000VA | 33×24×14 | 38.5×33.5×21.2 | 1 | 11.2 | 11.8 |
TMB-3000VA (variant) | AC 45V–270V | AC 220V ±10% 50/60Hz | Short Delay: 3~5s / Long Delay: 3~7min | Same | 3000VA | 33×24×14 | 38.5×33.5×21.2 | 1 | 11.2 | 11.8 |

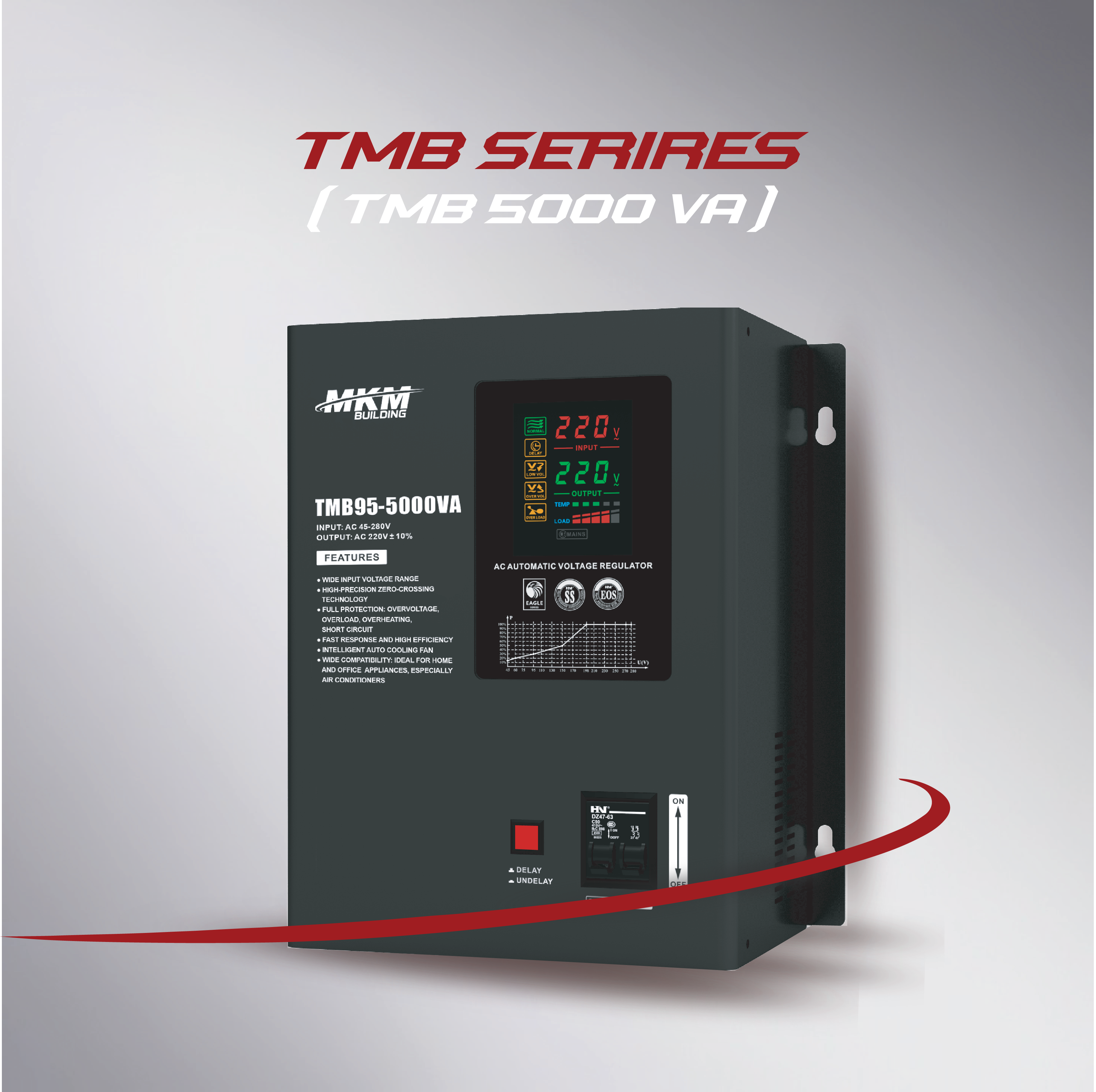

📋 TMB (5000VA Models)
Model | Input Voltage | Output Voltage | Delay Time | Protection | Power | Product Size (cm) | Packing Size (cm) | PCS/Carton | N.W. (kgs) | G.W. (kgs) |
|---|---|---|---|---|---|---|---|---|---|---|
TMB-5000VA | AC 130V–270V | AC 220V ±10% 50/60Hz | Short Delay: 3~5s / Long Delay: 3~7min | Over Voltage (246V±4V), Overload, High Temperature, Short Circuit | 5000VA | 36.5×27×17.5 | 41.5×36.5×24.5 | 1 | 15.4 | 16.2 |
TMB-5000VA (variant) | AC 45V–280V | AC 220V ±10% 50/60Hz | Short Delay: 3~5s / Long Delay: 3~7min | Same | 5000VA | 36.5×27×17.5 | 41.5×36.5×24.5 | 1 | 15.4 | 16.2 |
TMB-5000VA (variant) | AC 60V–280V | AC 220V ±10% 50/60Hz | Short Delay: 3~5s / Long Delay: 3~7min | Same | 5000VA | 36.5×27×17.5 | 41.5×36.5×24.5 | 1 | 15.4 | 16.2 |
TMB-5000VA (variant) | AC 95V–280V | AC 220V ±10% 50/60Hz | Short Delay: 3~5s / Long Delay: 3~7min | Same | 5000VA | 36.5×27×17.5 | 41.5×36.5×24.5 | 1 | 15.4 | 16.2 |
